Description

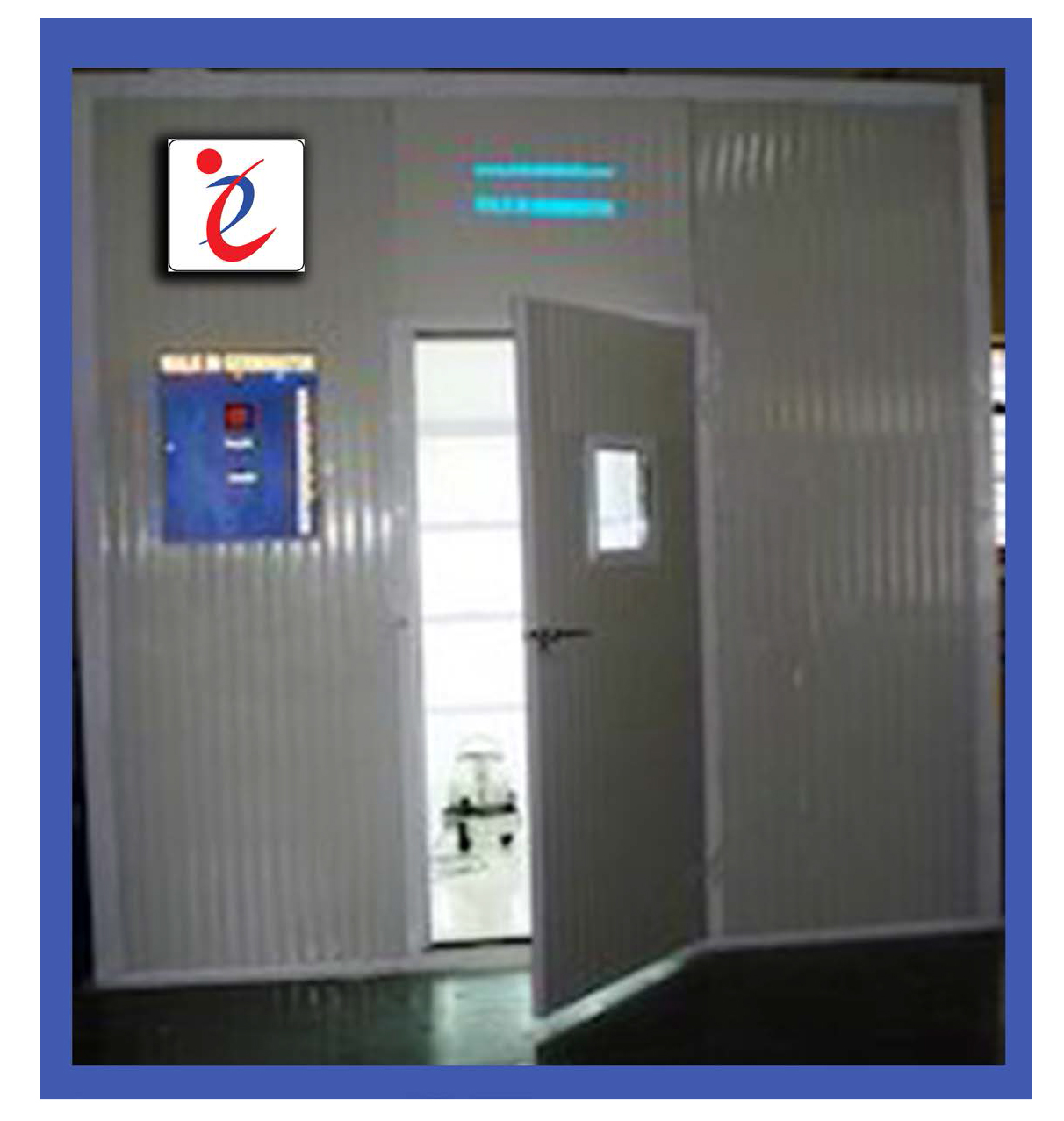

Els Instruments Offers Walk-In Germination Chambers and are the reliable Manufacturer and Supplier in various sizes and specifications to provide the user’s with largest germination areas within the available spaces. Our expert professionals design the Germination Chambers in an affordable yet very functional manner to provide optimum germination conditions like lighting, humidification etc.
Technical Specification for Walk in Germination Chamber Construction :
-
- Room Size : 10’x10’x7’ (LXBXH feet)
- Steel angular frame construction within the room to mount PUF insulated Panels
- For sandwich panel-gla met 4 external steel wall facing of 0.5mm thick and internal steel wall facing 0.4mm thick the coating on both the steel facings shall be smp on base metal that is galvalume thickness in mm 30 mm
- PUF construction door with glass window on heavy hinges and lock.
- Wall mounted Digital Temperature and Humidity Indicator with all controls and Indicators externally near the door for easy access and operation.
- Temperature can be controlled from 5C above ambient to 60C with an accuracy of ±1C.
- Humidity can be controlled up to 95% RH with an accuracy of ± 5%.
RACKS
- 8.2’ x 2’ x 6.5’ Or As required Growth racks to hold 20 Nos 2’ tubes
- Suitable to hold 40 trays For Germination
Trays :
- PVC coated
- Aluminum inner trays for the above. Optional
- Electrical Fittings
- 2’ Fluorescent tubes 40 Nos.
- Externally mounted Electronic choke Philips -40 Nos.
- MS powder coated cabinet with exhaust fan system to mount Electronic Ballast
- 4KVA Voltage stabilizer – 1 No.
- Control panel MS Powder coated – 1No,
- All electrical fittings like Contactors, MCB’s, Timers with single key operation
- Electrical fitting to mount Humidifiers and room heaters
- Racks Individual row on off felicity externally
- Humidifier and room heater on off felicity externally
- Thermostatic digital controller externally to automate room heater
- Air Conditioners : Split AC with Voltage stabilizer 1.5TR
Humidifiers and Room Heaters :
- Aerosol or Ultrasonic Room Humidifiers stainless steel with high pressure blower – one/ two Nos.
- Room heater along with Air circulation facility
.
