Description

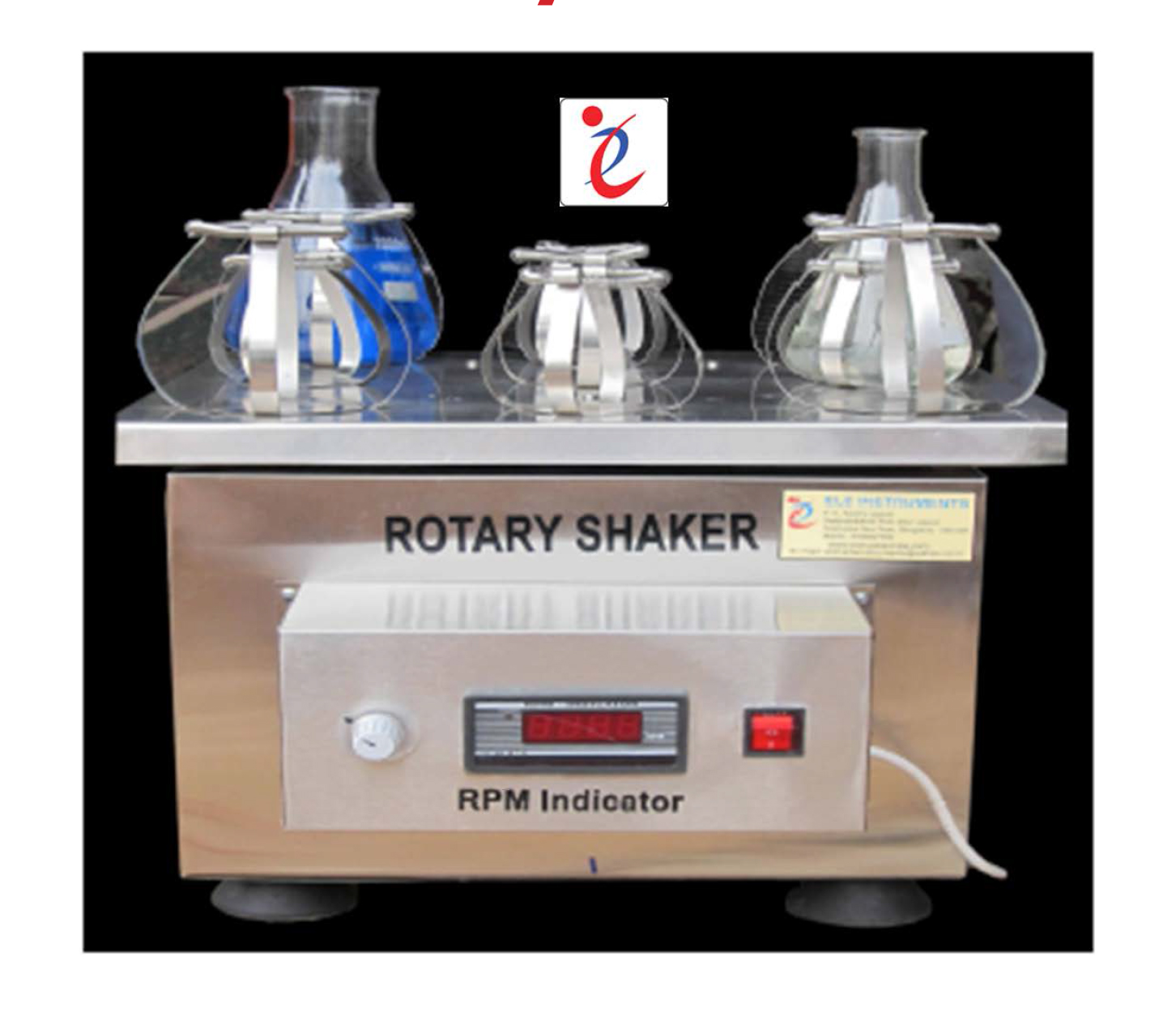

Els Instruments Manufacture best quality of Rotary Shaker which is ideal for mixing and development of culture. chemicals and pathological work etc. The unit is fabricating from heavy mild steel duly powder coated with continuous duty motor and controllable shaking speed from 50 to 250Rpm having different sizes of platforms with rubber disks / Lotus spring for holding flasks. Rotary movement -20mmDia.
| Model No. | Platform size | Capacity |
|---|---|---|
| ERS-1 | 300 x300 mm Addition platform |
250ml x 9nos 100ml x 16nos |
| ERS-2 | 450 x 450mm Addition platform |
250 x 16nos 100ml x 36nos |
| ERS-3 | 600 x 600mm Addition platform |
250ml x 36nos 100ml x 64nos |
| ERS-4 | 900 x 900mm Addition platform |
250ml x64nos 100ml x100nos |
OPTIONAL
- Digital Rpm display from 50 to 250Rpm with timer (1/99 min)
- 0-24 hrs weekly cyclic timer
- SS lotus clamps for holding flaks (instead of rubber disk)
Fermentor Mechanical Stirred Stainiess Steel :
This fermentor is widely used in microbiology. pharma. DNA proteins, Cell Cultural, Bio Fenilizer. Vaccine. Bio Pesticide. Bio Fuels or customer application and requirement. Its an ideal instrument for exact fermenting experimentation. It can be applied to the selection of culture medium component and dosage, optimising of fermenting technology parameter and test of fermentation techniques of bacteria seeds. Because the experiment result approaches that of the production scale. it is quite easy to scale up the fermentation process through the large-scale experiment. This type fermenter is generally applied to various fermenting process.
Vessel Material: S S 304 stainless steel
Driver: stirrer from top with 30Orpm
Steriliztion: to sterilized with steam
Stead Generator: Suitable to Fermentor Capacity Steam Generator
Air Compressor : The compressor shall be suitable to work on 230NAC single phase. The compressor is to
be run by suitable motor provided with starter.
| Model No | EF-10 | EF-15 | EF-25 | EF-50 | EF-100 | EF-200 | EF-300 |
| Capacity | 10Ltrs | 15Ltrs | 25Ltrs | 50Ltrs | 100Ltrs | 200Ltrs | 300Ltrs |
