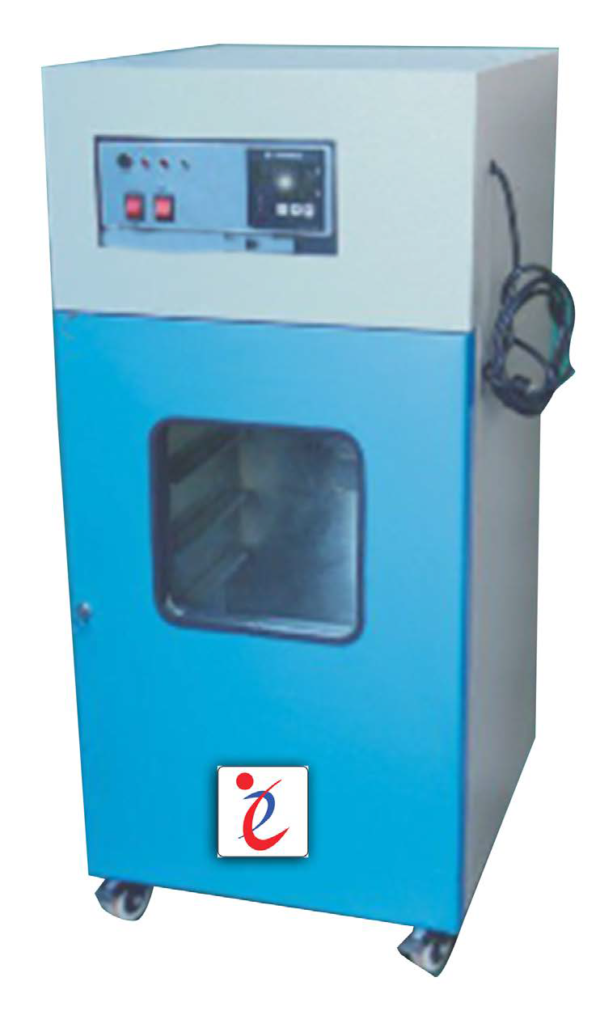

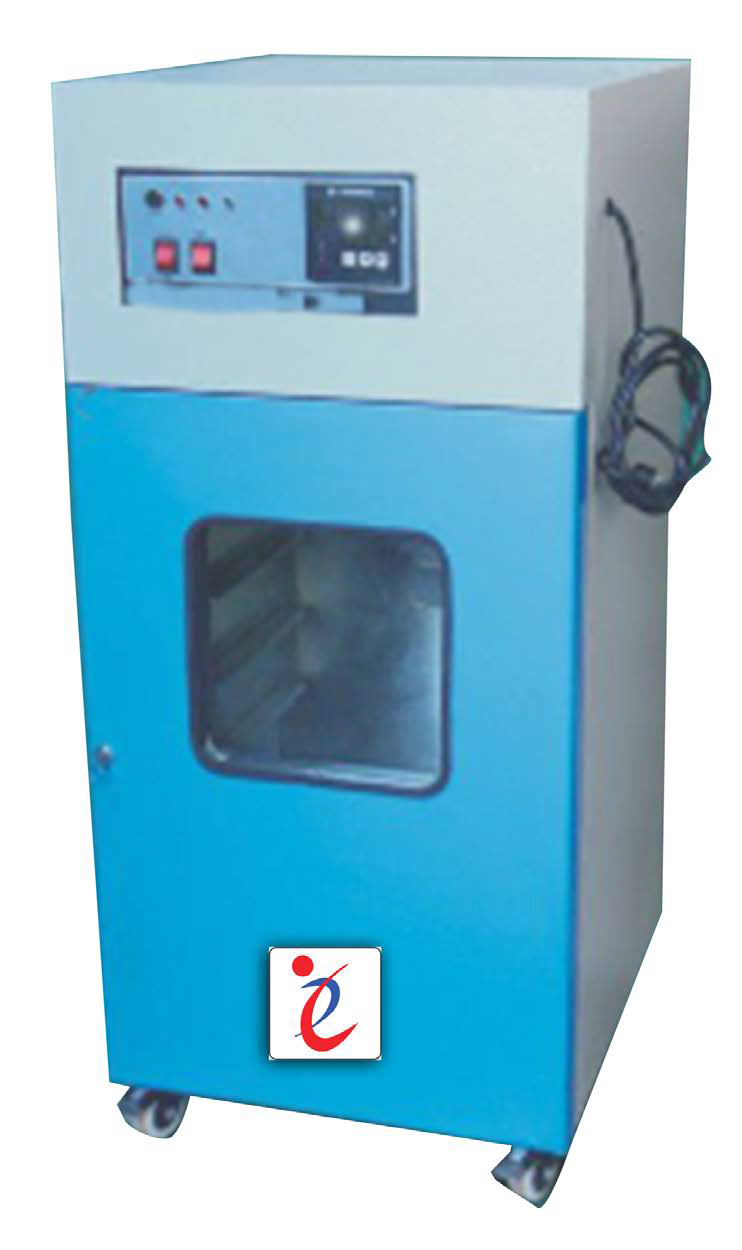

Humidity Cabinet

Environmental Test Chamber (Stability Test Chamber):

Double wall construction, inside of SS-304. and outside of M.S duly powder coated with
a front door having glass window to inspect the samples inside the chamber. These
chambers are designed for environment testing of production samples where both
temperature and humidity are to be controlled. Temperature can be controlled from
5º C to 60ºC with an accuracy of +/-1 ºC. Temperature and Humidity controlled by
Digital Temperature Controller Cum Indicator-LED [Dual display] from 40% to 90% with
sensitivity of +/-3%. supplied without hygrometer. Power supply -220/230 V.

DownLoad Brochure

Description

EHC-90 90 Ltrs 418 x 380 x 580 mm 3
EHC-150 150 Ltrs 418 x 440 x 825 mm 6
EHC-275 275 Ltrs 570 x 505 x 955 mm 10
EHC-350 350 Ltrs 620 x 570 x1050 mm 12
EHC-299 299Ltrs 570 x 500 x105 mm 11





















OPTIONAL :

  • Microprocessor controlled programmable Temperature and Humidity controller upto
    99% Humidity +/-5%
  • Bulls eye microprocessor PIO Temperature and Humidity controller with RS 232
    interface to take printout in regular interval without printer
  • Chamber illumination with the help of Fluorescent lamps
  • Sterilization of work area with the help of 2 U.V Lamps
  • Cyclic Timer 0-24 hours for regulating of U.V lamps

Automatic Voltage Stabilizer I KVA [for 3 & 6 cft] Automatic Voltage Stabilizer 3 KVA [for 10 & 12 cft] Hygrometer (Humidity Indicator). Humidity Range 0 to 100%R H

NB: Non use of stabilizer will render the warranty of the equipment invalid
