Description
.
TECHNICAL SPECIFICATIONS:
The below output result can be achieved by using treated water as a boiler feed
| CAT.NO: | EBSD-2 | EBSD-4 | EBSD-8 |
| Output | 2 litres/hr, single distilled |
4 litres/hr, single distilled | 8 litres/hr, single distilled |

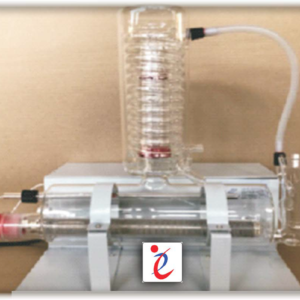

| Boiler | Borosilicate | Borosilicate | Quartz |
| Condensor | Borosilicate | Borosilicate | Borosilicate |
| pH | 6.0-7.0 | 6.0-7.0 | |
| Conductivity, μScm-1 |
0.8-1.0 | 0.8-1.0 | 0.8-1.0 |
| Temperature | 30 – 40°C | 30 – 40°C | 30 – 40°C |
| Pyrogen content * |
Pyrogen free | Pyrogen free | Pyrogen free |
| Water supply | 1.5 litre/min x 2 | 2 litre/min x 2 Input |
4 litre/min x 2 Input |
| Power requirement | 3 kW | 6 kW | 12 kW |
| Electricity supply | 220 or 240V,50-60Hz, single phase |
220 or 240V,50- 60Hz, single phase |
220 or 240V,50-60Hz, single phase |
.
