Description

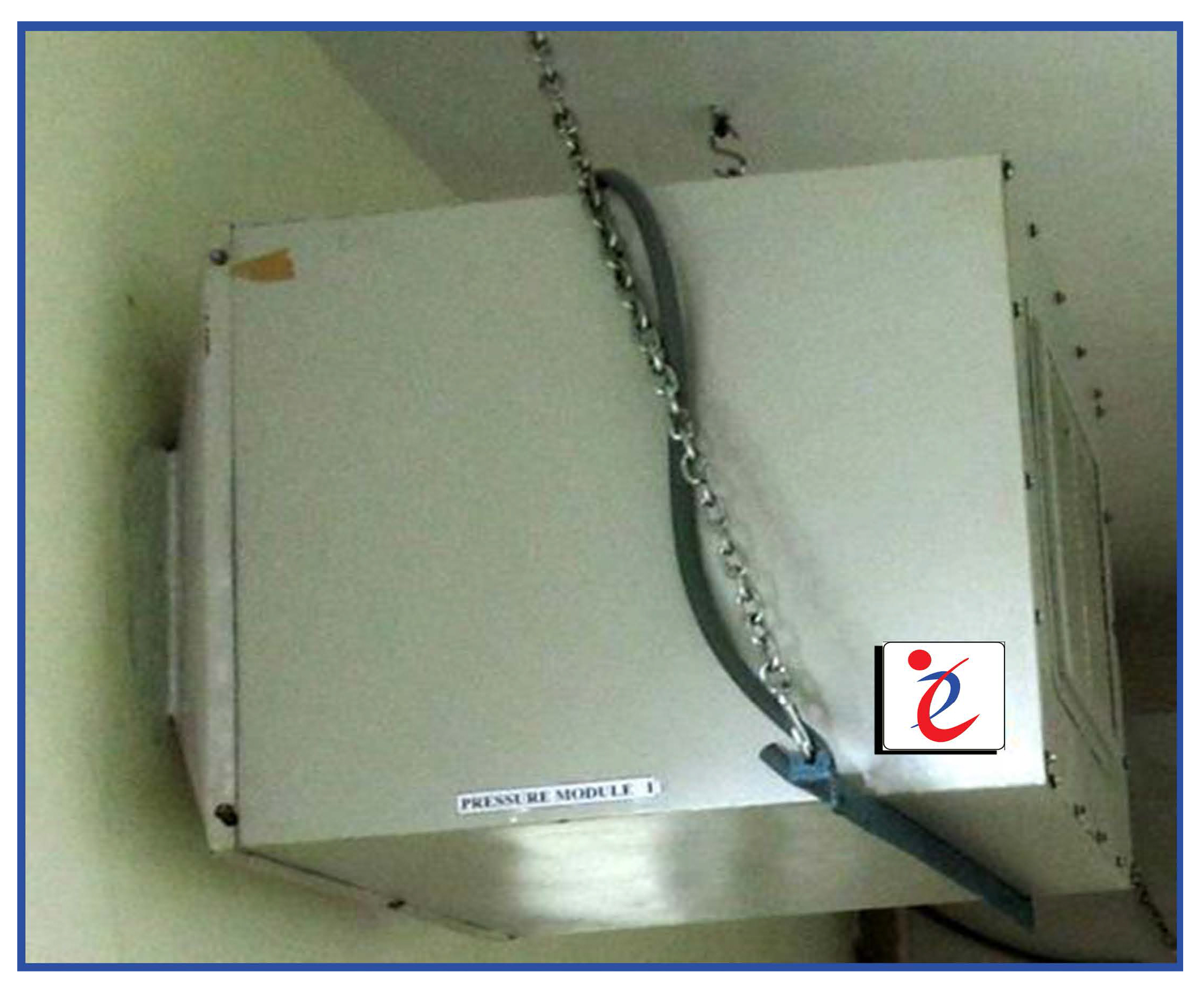

The lightweight, durable and highly efficient Air Pressure Models offered by Els Instruments can easily be mounted on ceilings and rooftops. Fabricated using graded raw materials and advance technology; they are functional in industries for protecting the clean rooms and sterilized equipment’s from contamination. Get them from us in custom specifications.
Additional Information:
filter having efficiency rating as high as 99.997% with hot, DOP, thus retaining all airborne particles of size: 0.3 micron and larger. This provides continuous supply of clean air into the room and allows the room to be in positive pressure. The blower and motor assembly are statically and dynamically balanced. Blowers are spring mounted to minimize vibration. One No. GE double shaft motor 1400 RPM fitted with 8” aluminium blower assembly.
- To work on 240V AC 50 Hz does the main function of suction and delivery.
- Size: 710 x 1200 x710mm
- Room duct size: 310x310x310 mm
Product Specification:
| HEPA Efficiency | 99.997% at 0.3 microns with DOP test |
|---|---|
| Pre-filter | Washable with an arrestance up to 90% at 5 microns |
| Air Velocity | 90FPM +-20% |
| Sound Level | 60-65 decibels |
| Cleanliness | Class 100 |
.
